Koyo DirectNET Introduction
Koyo DirectNET

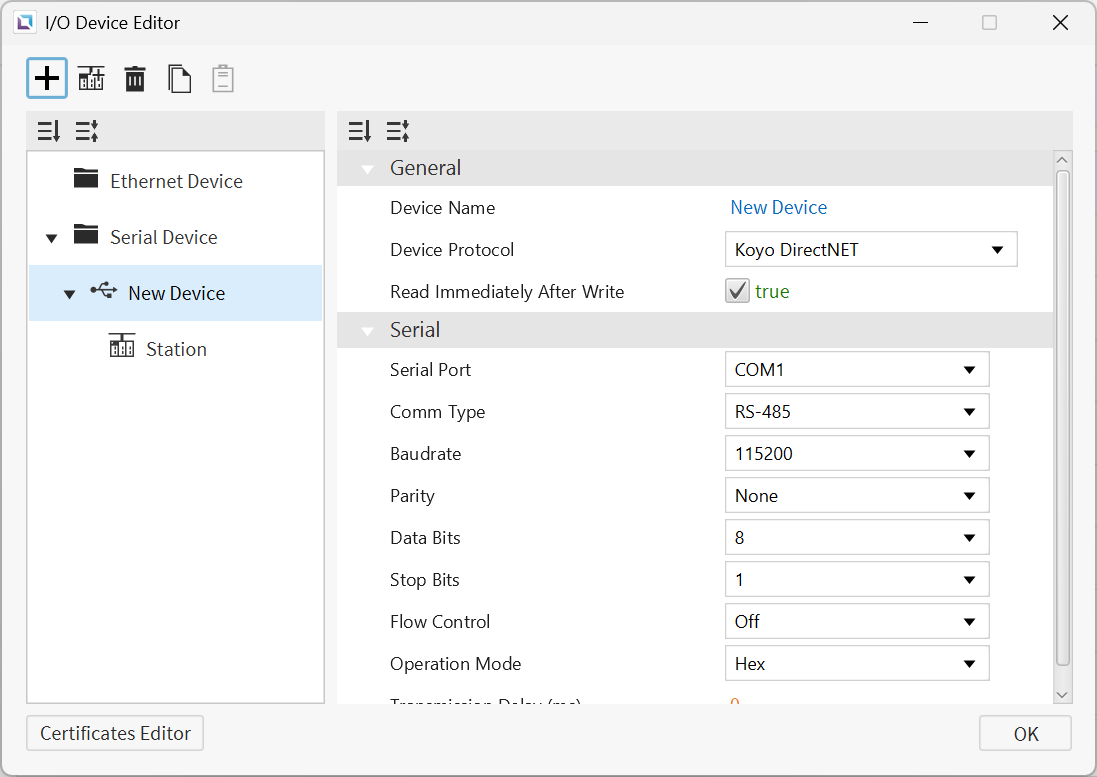

Canvas supports Koyo DirectNET as a way to connect to devices that support this protocol. Users can configure the Operation Mode.
Memory Area and Ranges
| Memory Area | Symbol | Digital | Analog | Address Notation | Access | Note |
|---|---|---|---|---|---|---|
| Remote Input | GX | GX0 - GX3777 | - | Octal | R/W | - |
| Remote Output | GY | GY0 - GY3777 | - | Octal | R/W | - |
| Input Points | X | X0 - X1777 | - | Octal | R/W | - |
| Output Points | Y | Y0 - Y1777 | - | Octal | R/W | - |
| Control Relays | C | C0 - C3777 | - | Octal | R/W | - |
| Stage Status | S | S0 - S1777 | - | Octal | R/W | - |
| Timer Status | T | T0 - T377 | - | Octal | R/W | - |
| Counter Status | CT | CT0 - CT377 | - | Octal | R/W | - |
| Special Relays | SP | SP0 - SP777 | - | Octal | R/W | - |
| Timer Accumulator | TA | - | TA0 - TA377 | Octal | R/W | - |
| Counter Accumulator | CTA | - | CTA0 - CTA377 | Octal | R/W | - |
| V Memory | V | - | V0 - V77777 | Octal | R/W | 1 WORD (2 bytes) per unit |
