Proface GPEthernet Introduction

Proface GPEthernet

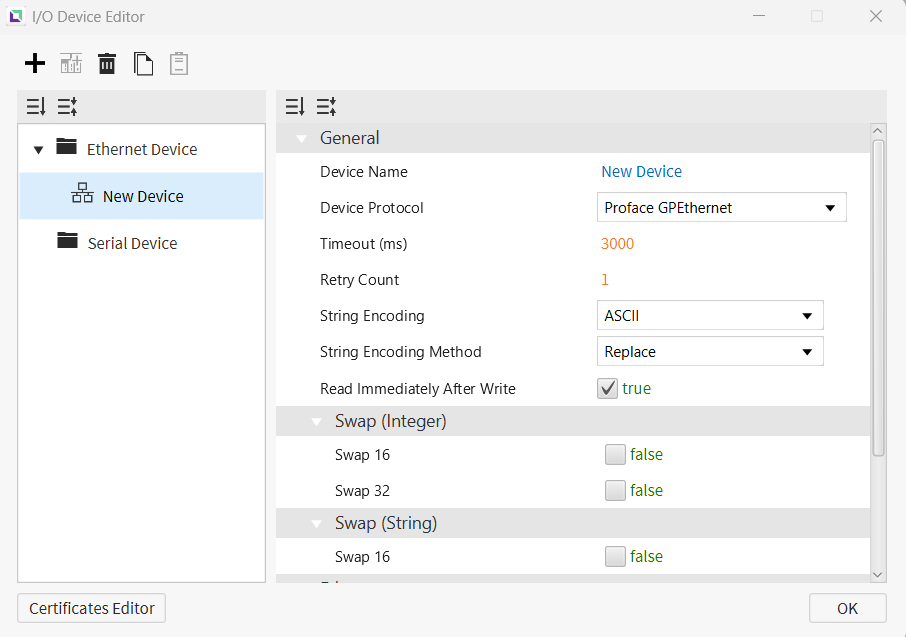

Canvas supports Proface GPEthernet as a way to connect to devices that support this protocol. Users can use Swap 16 on Integers and Strings or Swap 32 on Integers.

Memory Area and Ranges

Memory Area	Analog	Address Notation	Access
System Data	0000 - 0019	Decimal	R/W
User	0020 - 2031	Decimal	R/W
Special Relay	2032 - 2047	Decimal	R/W
User	2096 - 8899	Decimal	R/W
9000 Area	9000 - 9999	Decimal	R/W
